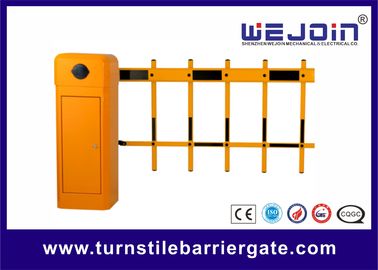

Long Arm Boom Parking Barrier Gate , Tubular Barrier Gates 1s 1.8s 3s 6s

ข้อมูลพื้นฐาน
สถานที่กำเนิด: จีน
ชื่อแบรนด์: WEJOIN
ได้รับการรับรอง: CE ISO SGS
Model Number: WJDZ102
จำนวนสั่งซื้อขั้นต่ำ: 1 ชุด
ราคา: 370USD-495USD
รายละเอียดการบรรจุ: กล่องกระดาษ
Delivery Time: 3-7days
Payment Terms: T/T, Western Union
สามารถในการผลิต: 10,000 ชุด / เดือน
ข้อมูลรายละเอียด
Motor Material: Die-casting Aluminum Alloy CE Aprroval: YES
Boom Option: Straight Highligh Feature: Safety
Optional Control: Yes Operation Time: 1s, 1.8s, 3s,6s
Customized Product: Yes Max Arm: 8m
แสงสูง:

auto barrier gate system

,

อุปสรรคที่จอดรถ


รายละเอียดสินค้า



Long Arm Boom Parking Barrier Gate , Tubular Barrier Gates 1s 1.8s 3s 6s





Our Services:

1. Professional and good after sale service and prompt replies will be done within 24 hours(working days).
2. Customized products will make your products stand our from others have your own style.
3. Strict quality control to ensure raw materials to final package before delivery are up to standard.
4. Professional products line meets customers' small order demands.
5. Competitive prices, high-efficiency & outstanding managements make production costs down.
6. Min order is one set, welcome to order our sample for testing and visiting our company!



Quick Detail:

Name

High Speed Barrier Gate

Application

Highway toll

Speed

1 second

Feature

Manual release

Rated Power

80W

Certificate

CE, ISO, SGS

Net Weight

60KG

Voltage

AC220V, AC110V





Fetures:

Advanced manual clutch; Auto reset when power on.

Both compression spring and extension spring are suitable for the motor.
The compression spring can avoid the accidents by caused by broken spring due to the great force.

Remote controllers control boom rising, failing and pausing.

Reversing on obstacle.

Infrared photocell for safety access(optional)

Support for the external and internal vehicle loop detector(optional)

Interface for opening, closing and stop, can connect to many access control systems

Rs485 communication module to connect to the computer to know more information about the access.

Traffic light interface

Wire control(Switch signal)/remote control 220MHZ




Model Selection and Differences

Model

Boom Shape

Max Boom Length

Speed

WJDZ10216

Straight boom

6m

6 seconds

WJDZ10213

Straight boom

4.5m

3 seconds

WJDZ10211

Straight boom

3m

1 second

WJDZ10226

90 degree, Articulated boom

5m

6 seconds

WJDZ10223

90 degree, Articulated boom

3m

3 seconds

WJDZ10236

180 degree, Articulated boom

5m

6 seconds

WJDZ10233

180 degree, Articulated boom

3m

3 seconds

WJDZ10246

Two-level, fence boom

4.5m

6 seconds

WJDZ10256

Three level, fence boom

4m

6 seconds



Specifications

Model

WJDZ102

Working Temperature

-40℃~+75℃

Voltage

220V±10%, 110V±10%, 50/60HZ

Rated power

80W

Relative humidity

≤90%

Remote control distance

≥30m

Net weight

60kgs

Speed

1S

Max boom length

3 meters



Long Arm Boom Parking Barrier Gate , Tubular Barrier Gates 1s 1.8s 3s 6s 0
