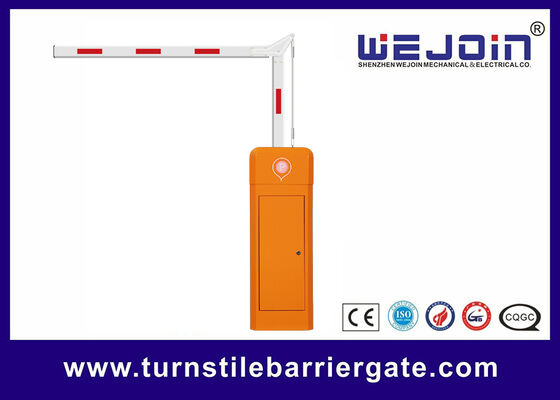

Automatic Barrier Gate with DC24V Brushless Motor and Durable Transmission Mechanism for Vehicle Access Control Systems
This automatic barrier gate is equipped with a DC24V brushless motor and a durable worm gear + planetary reduction transmission mechanism, providing stable and long-lasting performance for high-frequency vehicle access control applications.
DC24V Brushless Motor & Durable Transmission System
Powerful and Reliable Drive System
- DC24V brushless motor with worm gear and planetary reduction mechanism
- High output torque with low mechanical wear
- Smooth and stable operation for continuous-duty applications
- Suitable for high-frequency vehicle access control systems
DC Variable Frequency Control System
Precise Motion Control and Extended Service Life
- Variable frequency control with soft start and soft stop
- Precise speed adjustment for smooth boom movement
- Reduced mechanical impact helps extend component life
- Adjustable opening and closing speed to suit different traffic flow requirements
Intelligent Anti-Collision Protection
Enhanced Vehicle and Pedestrian Safety
- Automatic boom reversal when obstruction is detected
- Fast response helps protect vehicles and pedestrians
- Supports multiple anti-crush devices:
- Loop detector
- Infrared photocell
- Radar sensor (optional)
LCD Control Panel
Convenient Setup and Maintenance
- Large LCD display with English visual menu
- User-friendly parameter configuration
- Simplified troubleshooting and maintenance
- Easy operation for installers and system integrators
Multiple Control and Communication Interfaces
Flexible System Integration
- 433 MHz remote controller with simple pairing and expansion
- Relay signal output for external control devices
- RS485 communication interface
- Compatible with parking management systems and license plate recognition (LPR) systems
Emergency Operation During Power Failure
Ensure Continuous Vehicle Access
- Manual boom lifting through handwheel operation
- Optional DC24V backup battery or super capacitor
- Maintains vehicle access during power outages
Controller Interface Specifications
Wire Control Interface
Designed for parking systems and external controllers.
Open: Short-circuit UP and GND
Close: Short-circuit Down and GND
Stop: Short-circuit Stop and GND
Anti-Smashing Interface
Infrared Photocell
During boom closing, short-circuit the Infrared Photocell Interface and GND. The boom will immediately reverse and lift.
Loop Detector
During boom closing, short-circuit the Loop Detector Interface and GND, and the boom will reverse and lift. After the barrier reaches the fully open position, the boom will close automatically once the signal is disconnected.
RS485 Communication Interface
The RS485 interface enables:
- Barrier gate control through computers or management systems
- Real-time status monitoring
- Online synchronous control of paired barrier gates
- Integration into intelligent parking and access control systems
Technical Specifications
| Parameter |
WJCB01VF-H |
WJCB01VF-I |
| Running Speed |
1-4S |
2-6S |
| Boom Type |
Straight |
Straight |
| Max Boom Length |
4.5M |
4M~8M |
| Input Voltage |
AC100-265V |
| Frequency |
50/60HZ |
| Motor Voltage |
DC24V |
| Enclosure Rating |
IP54 |
| Working Temperature |
-30°C ~ +70°C |
| MTBF |
6,000,000 times |
| Traffic Flow Application |
24 hours uninterrupted operation |
| Max Motor Power |
240W |
180W |
| Max Motor Speed |
500r/min |
360r/min |
| Max Torque |
280N.m |
320N.m |
