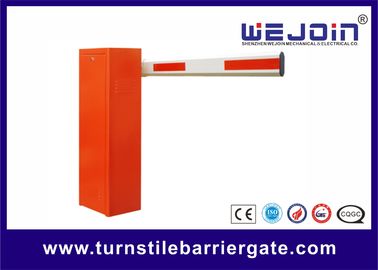

110v / 220v Road Barriers Parking Barrier Gate with Red Color Housing

ข้อมูลพื้นฐาน
สถานที่กำเนิด: จีน
ชื่อแบรนด์: WEJOIN
ได้รับการรับรอง: CE ISO SGS
Model Number: WJDZ701
จำนวนสั่งซื้อขั้นต่ำ: 1 ชุด
ราคา: Negotiable
รายละเอียดการบรรจุ: กล่องกระดาษ
Delivery Time: 3-5 working days after payment being received
Payment Terms: T/T, Western Union
สามารถในการผลิต: 10,000 ชุด / เดือน
ข้อมูลรายละเอียด
Color: Red; Yellow Motor: Die Casting Aluminum Alloy
Speed: 3s,6s Max Boom Length: 6m
Power: 120W Boom Dimension: 45*100mm
แสงสูง:

parking lot arm gate

,

auto barrier gate system


รายละเอียดสินค้า



110v / 220v Road Barriers Parking Barrier Gate with Red Color Housing







Quick Detail



Name

Bi-directional Barrier Gate

Application

Parking System

Speed

3/6 second

Feature

Manual release

Rated Power

120W

Certificate

CE, ISO, SGS

Net Weight

39KG

Voltage

AC220V, AC110V







Model Selection and Differences



Model

Boom Shape

Max Boom Length

Speed

WJDZ70116

Straight boom

4.5m

6 seconds

WJDZ70113

Straight boom

4m

3 seconds

WJDZ70126

90 degree, Articulated boom

4m

6 seconds

WJDZ70123

90 degree, Articulated boom

3m

3 seconds

WJDZ70136

180 degree, Articulated boom

4m

6 seconds

WJDZ70133

180 degree, Articulated boom

3m

3 seconds

WJDZ70146

Two-level, fence boom

3.5m

6 seconds

WJDZ70156

Three-level, fence boom

3m

6 seconds





Functions & Features:





1.Advanced manual release

2.Boom can rise and fall on left/right side by setting on the same machine
3.No need to change the balance spring when changing the booms
4.Adopts the 3rd generation WEJOIN machine core
5.Supports the infrared photocell for anti-bumping function (optional)
6.Supports the external and internal vehicle loop detector (optional)
7.Auto closing
8.RS485 communication module (optional)
9.Thermal radiates rapidly, no thermal protection
10.Die-cast aluminum alloy machine core and advanced double-stage driving motor effectively solve the

problem of mechanism block up
11.Special art and craft makes out the most modernized and fashionable housing
12.Safety photo electricity limit switch





Applications



Barrier Gate with aluminum alloy housing screen uses the third generation motor. It is stable and has long service life performance, running one million times. And the barrier can work with parking system very well, and can be used in door and outdoor.





Dimension for Housing





110v / 220v Road Barriers Parking Barrier Gate with Red Color Housing 0
